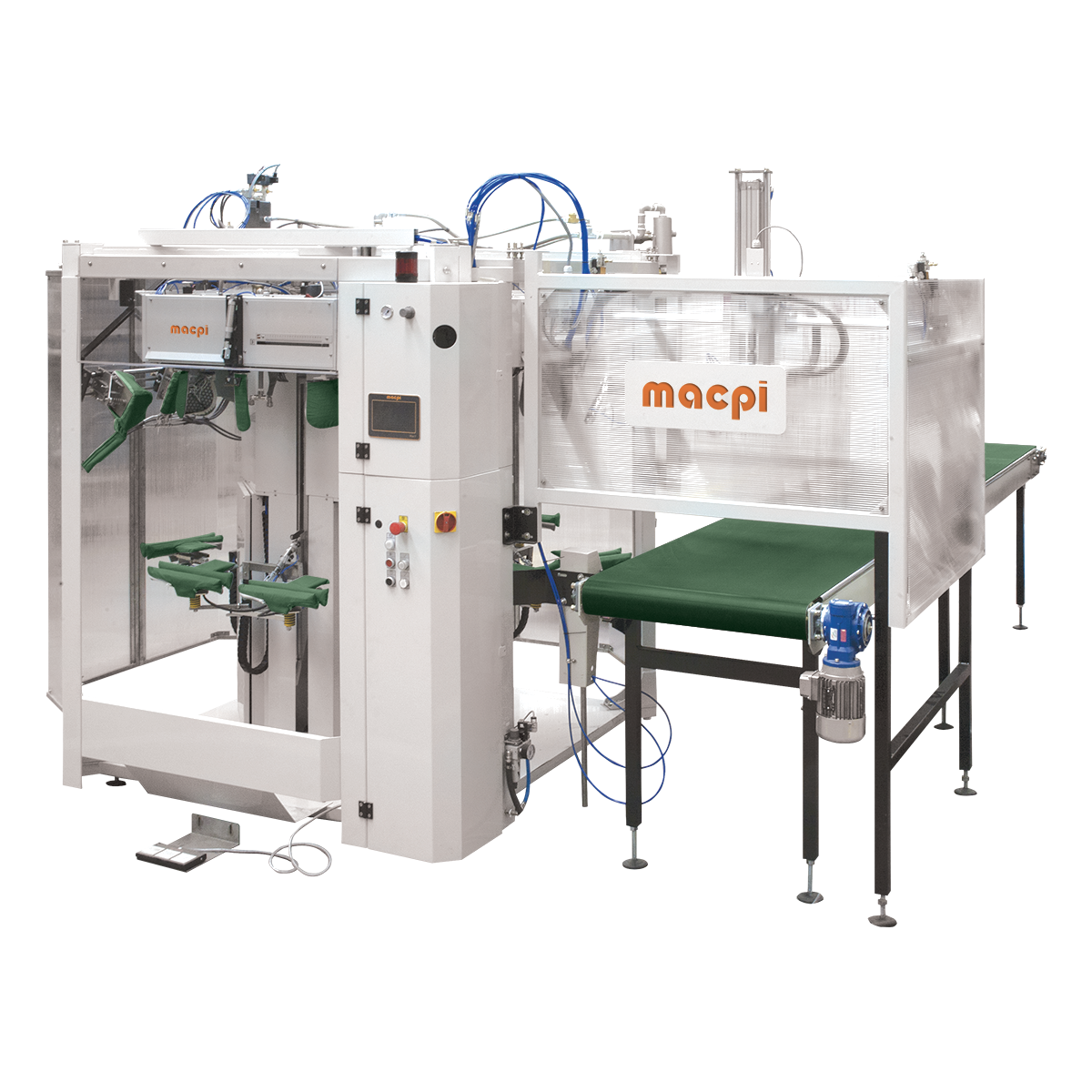

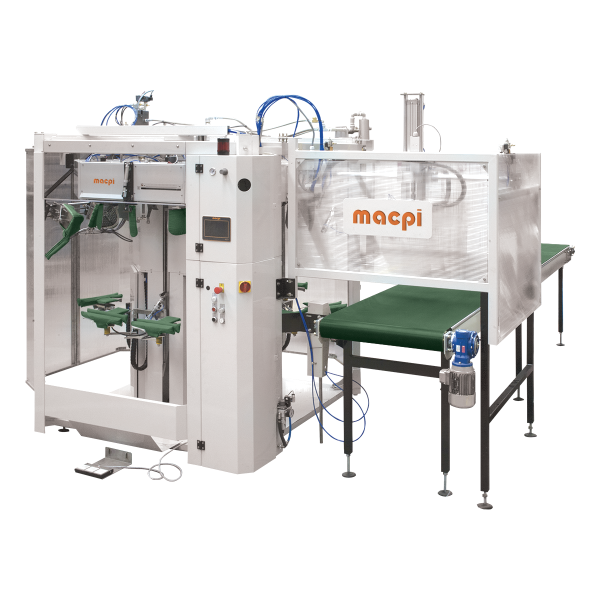

FINISHING OF TROUSERS WITHOUT PLEATS

Electropneumatic unit for trousers finishing without pleats.
Possibility of front flap and front pocket pressing.
The unit is featuring the following characteristics and is complete with:
* 7″ Touch Screen TC7
* 4 steaming and blowing stations fitted on rotating plate
* shaped plates for top (the tension is released on the trouser top sides)
* standard shaped medium size plates fitted on the machine
* trouser tensioning device with mechanical adjustment for pressing both babies/short and large size men’s trousers (possibility of legs sizing by changing the loading position upwards)
* pneumatic adjustment for legs and tops tensioning by a sensor for position locking
* adjustable steaming flow
* device to adjust air blowing flow
* front flap blocking device and rear belt
* adjustable and tilting legs clamps
* steam superheater
* air blowing by electric fan of 2,2Kw
* airblowing heating
* adjustable clamps pressure
* electronic time set-up for steaming, air blowing delay, air blowing and anticipated clamps opening
* production counter
